Free SAN and storage performance and capacity monitoring

SAN monitoring

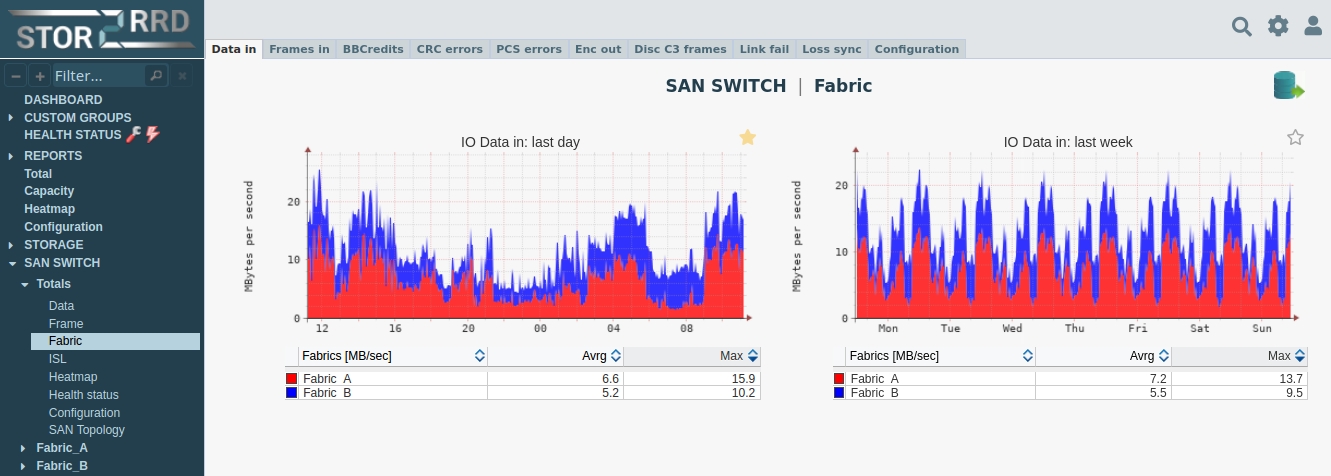

SAN GUI

It uses SNMP protocol to get data from all SAN switches.

You can see all features on our demo site.






Supported devices

  • Brocade switches and all their re-brands
  • Cisco MDS
  • Cisco Nexus

Feature matrix


total

fabric

switch

port

metrics

Port SAN switch port Data in/out
Frames in/out
BB credits
CRC errors
Port
aggregated
SAN switch port agg
Switch
aggregated
SAN switch agg SAN fabric agg
ISL
aggregated
SAN ISL agg
Graph examples show only "data in" metric.

Monitored metrics

  • Data throughput [MB/sec]
  • Frame throughput [frames/sec]
  • Buffer credits usage
  • CRC errors
  • Encoding errors

Aggregated graphs per

  • Port
  • Switch
  • Fabric
  • All switches total
  • ISL (Inter Switch Link)

Additional features

  • Brocade vFabric support
  • Cisco VSAN support
  • Fabric configuration (aliases, zones, ... only for Cisco switches)
  • Graphical healthcheck (HW or logical issues on ports or switches)
  • Historical reporting
  • GUI zooming
  • Heatmap
